As part of our 2011 showcase series with ROTOR bike components, RCUK is delighted to be showcasing the pro peloton’s most innovative drivetrain and other components from Spanish engineering brand – ROTOR, distributed in the UK exclusively by Velotech Services.
ROTOR supply their 3D, 3D+ cranks and Q-Rings to Garmin-Cervelo, Vacansoleil and Saur-Sojasun. We invite you to follow these teams and their riders as they do battle in the world’s toughest stage race – the Tour de France.
This showcase gallery highlights ROTOR products and offers basic information as well as links to ROTOR’s website where you will find extensive product descriptions and further technical information.
You can either scroll through the gallery below, or if you have a particular component you would like to view immediately – please use the links below:
VAN SUMMEREN & Q-RINGS Oval Rings
VANDEVELDE & Q-RINGS Oval Chainrings
THOR & ROTOR 3D+ Crank
HAUSSLER & Q-RINGS Oval Chainrings
FARRAR & ROTOR 3D+ Crank
ROTOR 3D Crank
ROTOR S3X Stem
ROTOR Sabb
ROTOR 50T compact Aero Qring
ROTOR Foto Principal Qring
ROTOR SP1 In line seatpost
ROTOR SD1 Saddle – Titanium Rails
*NEW* ROTOR BSA 30 BB Bearings
*NEW* ROTOR 3D+ 30mm Axle Cranks
VAN SUMMEREN & Q-RINGS Oval Rings
Poised to become the next “must-have” product in cycling, Q-Rings increase your efficiency by maximising use of the effective zones of the pedalling stroke and by reducing the intensity of the “dead spot” zones.
By maximising use of the legs´ strengths and compensating for its weaknesses, they offer easier climbing, faster acceleration and a smoother pedalling, with reduced joint and tendon loadings due to better muscle strain distribution. Their revolutionary shape and well defined orientation adjustment options (OCP Technology) ensure serious race day advantages, further underlined by their multiple UCI World Champion titles and the recent victory at Paris-Roubaix, the “Northern Hell“.
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
VANDEVELDE & Q-RINGS Oval Chainrings
Poised to become the next “must-have” product in cycling, Q-Rings increase your efficiency by maximising use of the effective zones of the pedalling stroke and by reducing the intensity of the “dead spot” zones.
By maximising use of the legs´ strengths and compensating for its weaknesses, they offer easier climbing, faster acceleration and a smoother pedalling, with reduced joint and tendon loadings due to better muscle strain distribution. Their revolutionary shape and well defined orientation adjustment options (OCP Technology) ensure serious race day advantages, further underlined by their multiple UCI World Champion titles.
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
THOR & ROTOR 3D+ Crank
ROTOR Bike Components has developed a specific BB30 and BBright crankset based on its successful 3D crank.
100% compatible with any BB30 or Classic BSA threaded frame (using special ROTOR “BSA30” BB cups) on the market. 3D+ cranks have an improved version of our proprietary “Trinity Drilling System” technology. Due to the larger axle-crank contact area of a BB30 crank, all three holes can be drilled from the axle side of the crank arm, allowing for further optimization of wall thicknesses and saving weight.
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
HAUSSLER & Q-RINGS Oval Chainrings
Poised to become the next “must have” product in cycling, Q-Rings increase your efficiency by maximizing use of the effective zones of the pedalling stroke and by reducing the intensity of the “dead spot” zones. By maximising use of the legs’ strengths and compensating for its weaknesses, they offer easier climbing, faster acceleration and a smoother pedalling, with reduced joint and tendon loadings due to better muscle strain distribution.
Their revolutionary shape and well defined orientation adjustment options (OCP Technology) ensure serious race day advantages, further underlined by their multiple UCI World Champion titles.
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
FARRAR & ROTOR 3D+ Crank
ROTOR Bike Components have developed a specific BB30 and BBright crankset based on its successful 3D crank. 100% compatible with any BB30 or Classic BSA threaded frame (using special ROTOR “BSA30” BB cups) on the market. 3D+ cranks have an improved version of our proprietary “Trinity Drilling System” technology.
Due to the larger axle-crank contact area of a BB30 crank, all three holes can be drilled from the axle side of the crank arm, allowing for further optimisation of wall thicknesses and saving weight.
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

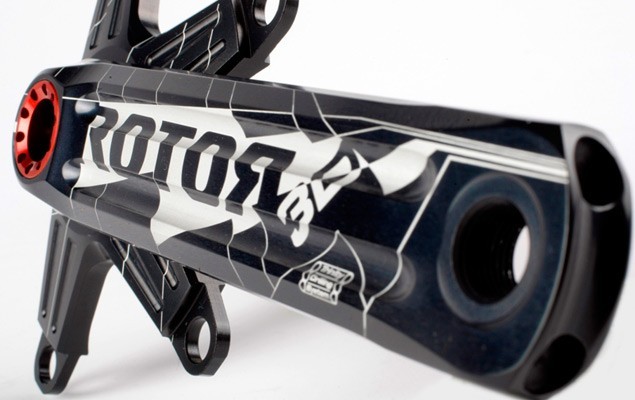

ROTOR 3D crank
The first cranks to have been designed with the input of a complete pro cycling team (Cervelo Test Team), the 3D is stiff enough for Thor Hushvold and light enough to satisfy the needs of the climbers on the team.
Weight 525 grms (Steel Axle) , 485 (Titanium Axle)
Available Road and road compact, MTB double and triple.
£248
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
ROTOR 3D crank
The first cranks to have been designed with the input of a complete pro cycling team (Cervelo Test Team), the 3D is stiff enough for Thor Hushvold and light enough to satisfy the needs of the climbers on the team..
Weight 525 grms (Steel Axle) , 485 (Titanium Axle)
Available Road and road compact, MTB double and triple.
£248
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
ROTOR 3D crank
The first cranks to have been designed with the input of a complete pro cycling team (Cervelo Test Team), the 3D is stiff enough for Thor Hushvold and light enough to satisfy the needs of the climbers on the team.
Weight 525 grms (Steel Axle) , 485 (Titanium Axle)
Available Road and road compact, MTB double and triple.
£248
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

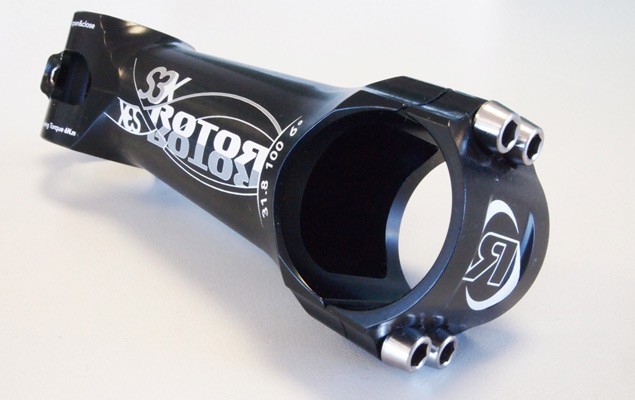

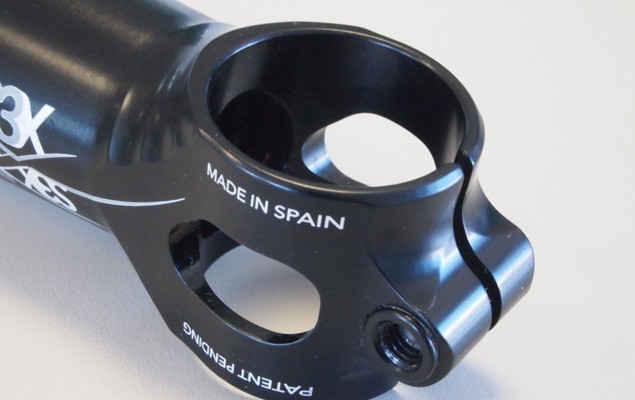

ROTOR S3X Stem
Rotor S3X Road & MTB Stem 4 Bolt 6Degs with Red or Black Faceplate options. Carbon friendly steerer clamping.
Sizes 70mm-130mm
6 Degrees
Black or Red face plate.
Weight 101grms (100mm)
No rider weight limits.
£119
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
ROTOR S3X Stem
Rotor S3X Road & MTB Stem 4 Bolt 6Degs with Red or Black Faceplate options. Carbon friendly steerer clamping.
Sizes 70mm-130mm
6 Degrees
Black or Red face plate.
Weight 101grms (100mm)
No rider weight limits.
£119
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

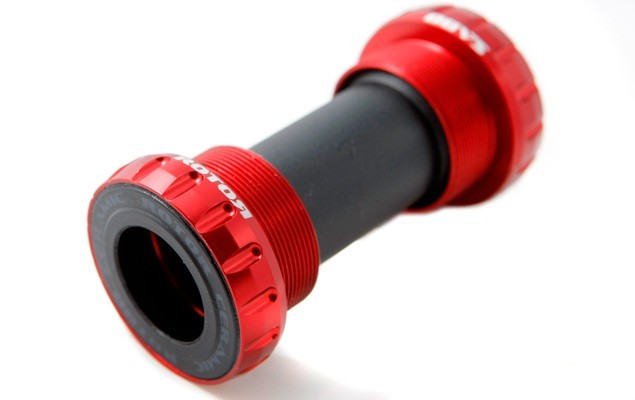

ROTOR SABB
ROTOR’s self-aligning bottom bracket. Red cups. Lightweight (81g) Enduro ceramic bearings. New advanced non contact labyrinth seals give buttery smooth spinning with unparalleled protection against dust, water and mud.
Guaranteed perfectly level Axles under normal loading conditions
Ceramicspeed ceramic bearing as standard
Weight 81grms(Road) 89grms (MTB)
£145
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
ROTOR SABB
ROTOR’s self-aligning bottom bracket. Red cups. Lightweight (81g) Enduro ceramic bearings. New advanced non contact labyrinth seals give buttery smooth spinning with unparalleled protection against dust, water and mud.
Guaranteed perfectly level Axles under normal loading conditions
Ceramicspeed ceramic bearing as standard
Weight 81grms(Road) 89grms (MTB)
£145
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
ROTOR 50T compact Aero Qring
Combine with 34/36
Single price £122
£155 per pair
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

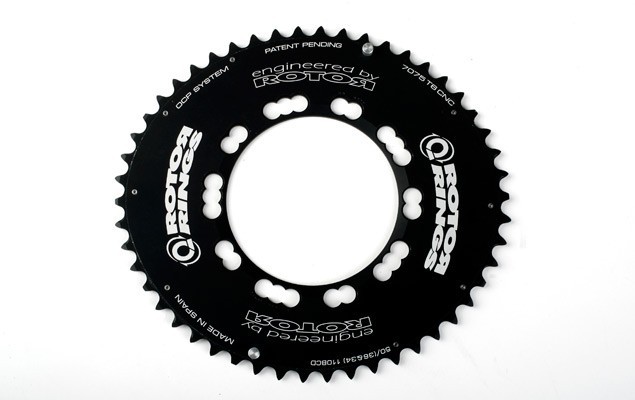

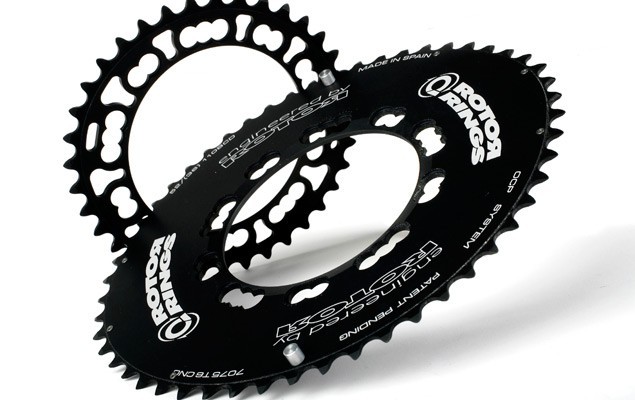

ROTOR Foto Principal Qring
Standard pairs 130BCD
50,52,53 / 39,42
From £124 or £155 per pair
Aero rings 130BCD
53,54,55
From £124 or £155 per pair
Compact pairs 110BCD
50,52,53 / 34,36,38
£155
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

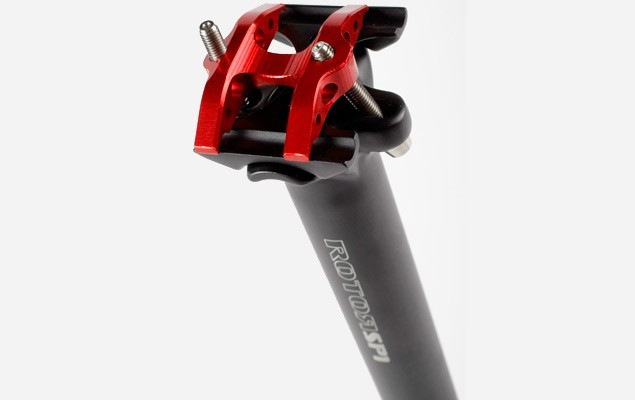

ROTOR SP1 In line seatpost
Light. Strong. Easy to adjust using ingenious ‘capable arch’ clamping system, unique to ROTOR.
Sizes 27.2mm, 30.9mm, 31.6mm Diameter, 350mm and 400mm length.
Weight 178grms
Ti bolts using capable arch rail friendly clamping system.
£77
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

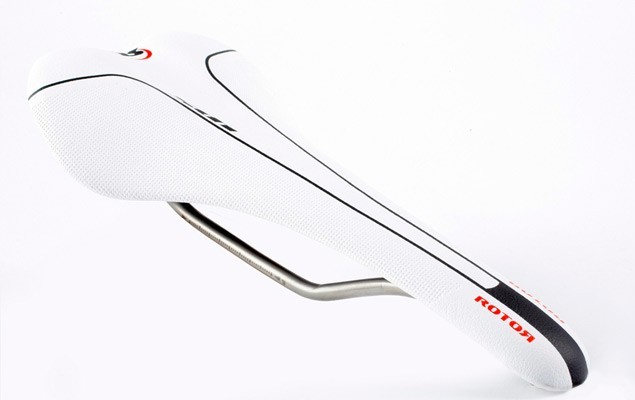

ROTOR SD1 Saddle – Titanium Rails
SD1- ROTOR Know how – applied to a saddle. Exremely lightweight and stiff.
Lorica Microfibre cover, Waterproof and resistant to abrasion
Titanium Rails
Anti slide Anti fade external treatment
136Grms
£99
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

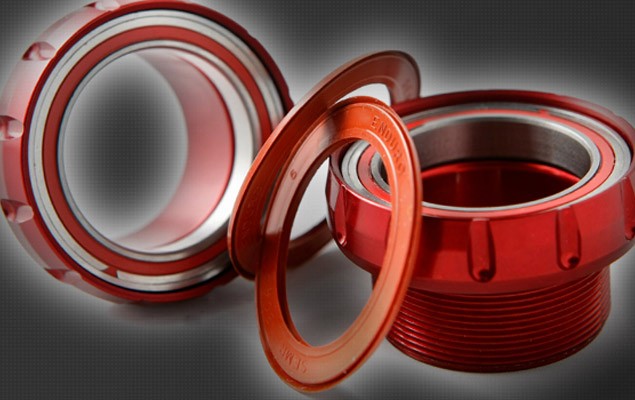

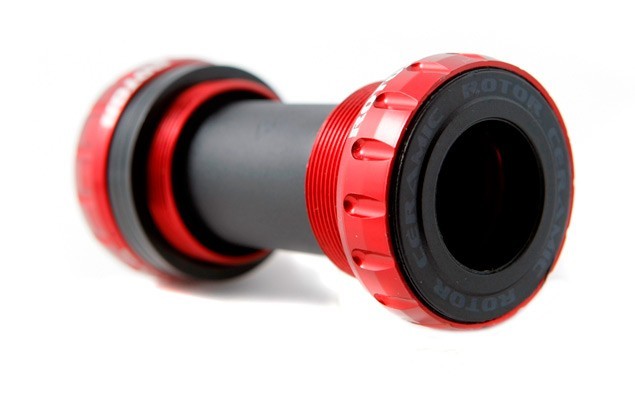

ROTOR BSA 30 BB Bearings
Rotor’s BSA30 bottom bracket allows the installation of our 3D+ BB30 cranks into a standard, threaded bottom-bracket.
The BSA30 is available in black color with steel bearings or red with Enduro Grade5 Ceramic bearings. The steel option offers a light and elegant bottom bracket at a very competitive price while the ceramic bearing options are ideal for those looking to shed every possible gram while at the same time acquiring an incredibly smooth bottom bracket.
Both versions are available for road (BSA only) as well as MTB use. The ceramic versions come in at an incredible 86g, while the steels comes in at 96g (depending on size and the number of spacers needed, an extra 3 to 9 grams may be added).
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]

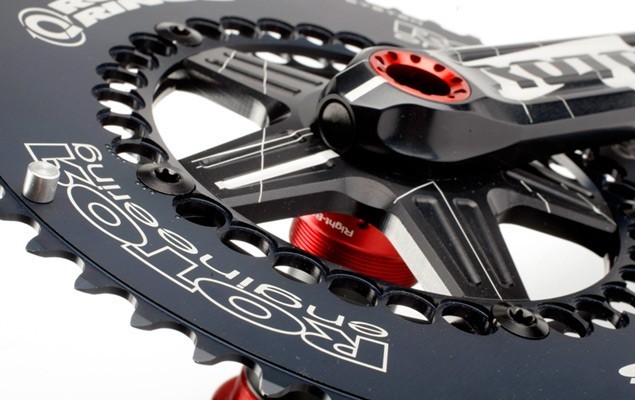

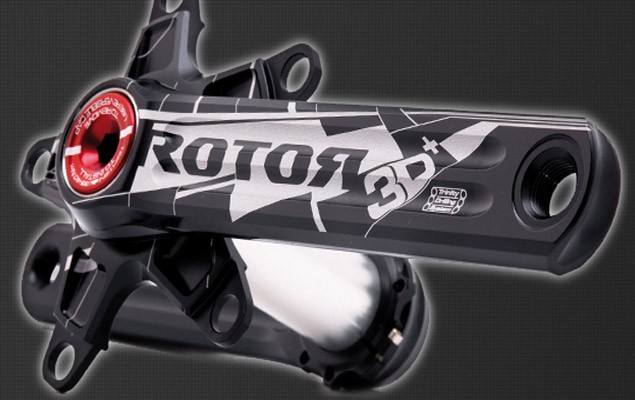

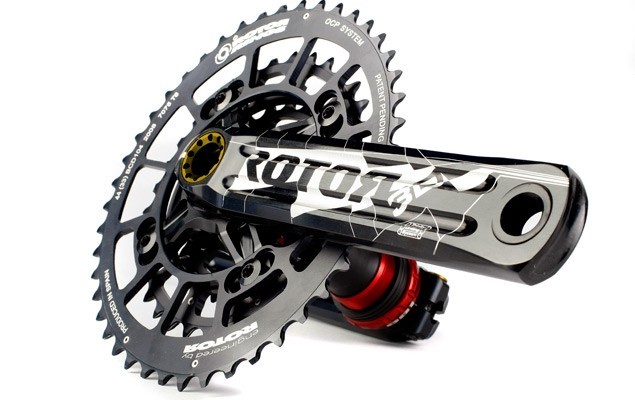

ROTOR 3D+ 30mm Axle Cranks
Developed during 2010 with the help of Cervelo test team, and ridden to World cup success by Thor Hushvold in 2010. The oversize 30mm axle provides massive lateral and torsional stiffness, combined with weight reduction (470grms).
Innovations include a new High precision lockring for BB pre load and adjustment. 3D+ is 100% compatible with:
Cervelo BBRight specification:
BB30 frames 68mm width
Classic threaded frames (using the NEW ROTOR BSA threaded 30mm bearing cups)
All 130/110 BCD Qrings and round rings
View a video of ROTOR Beyond The Peloton Episode 2: Q-Rings & 3D+ Crank [HD]
